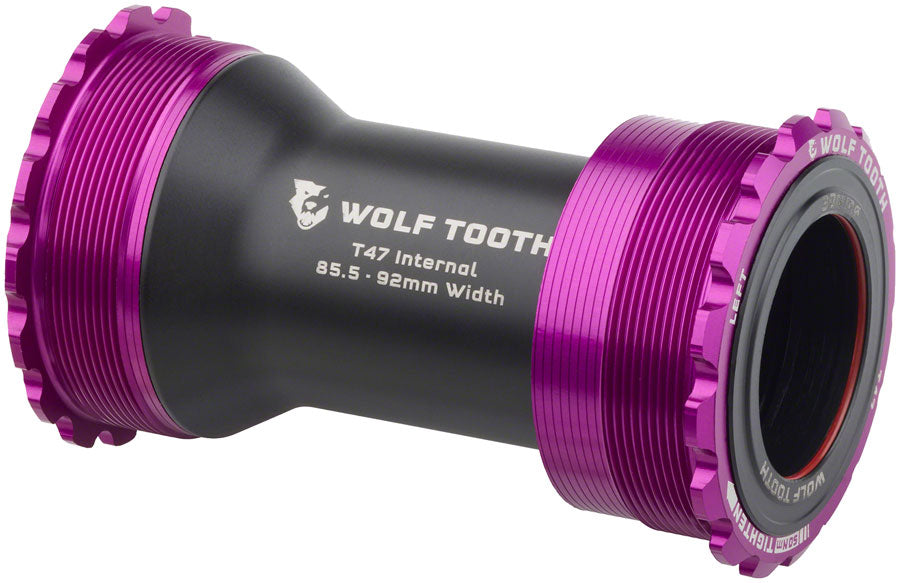

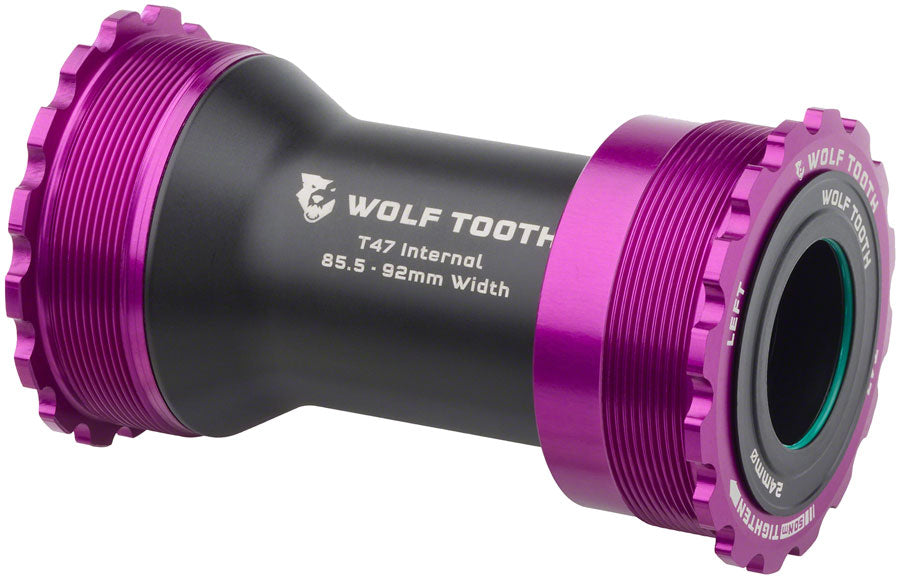

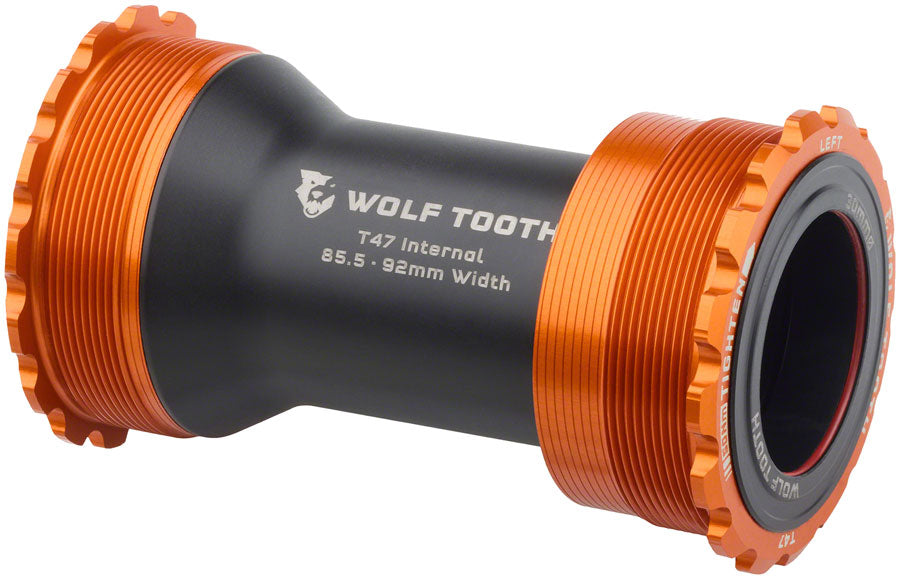

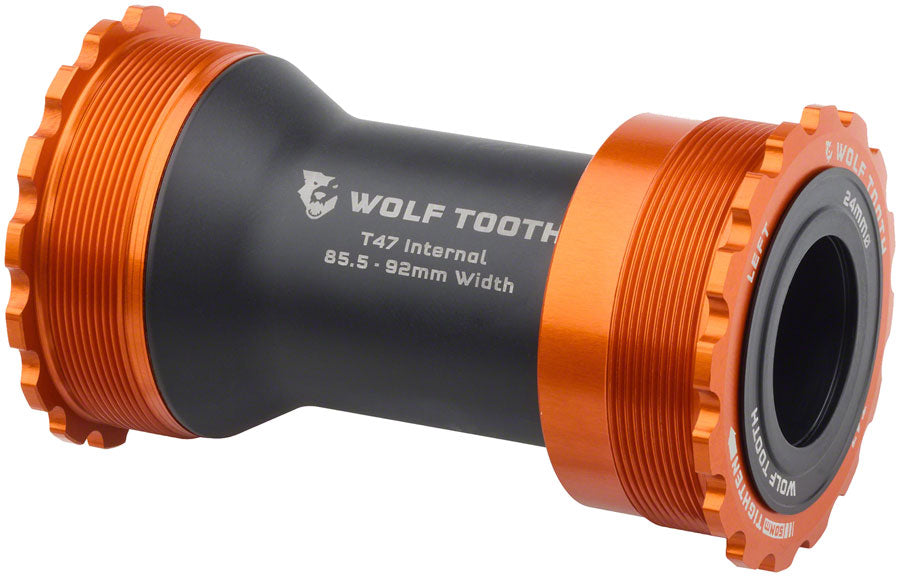

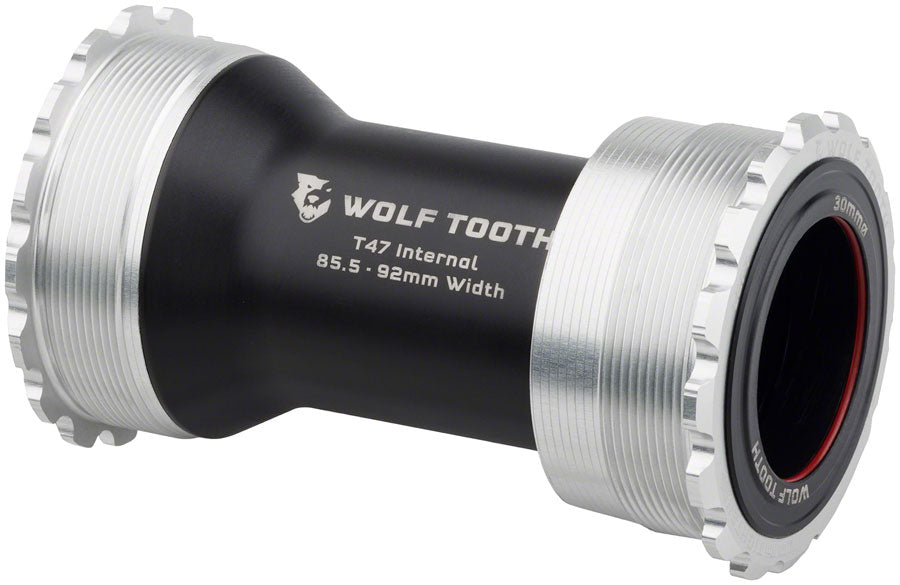

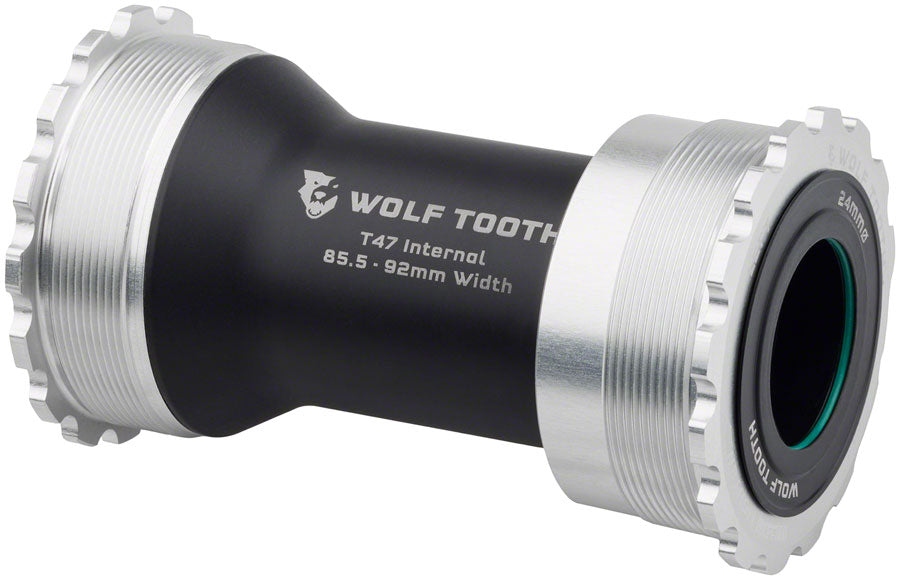

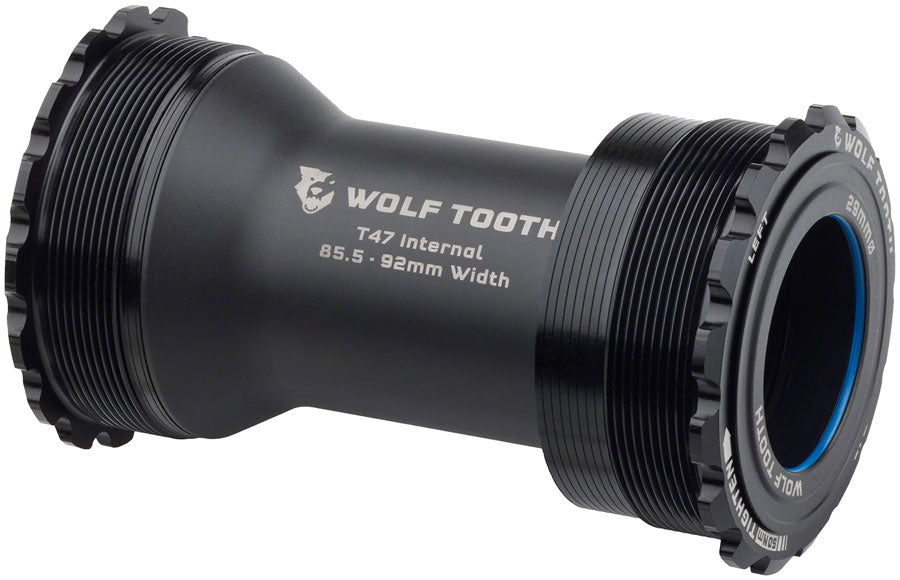

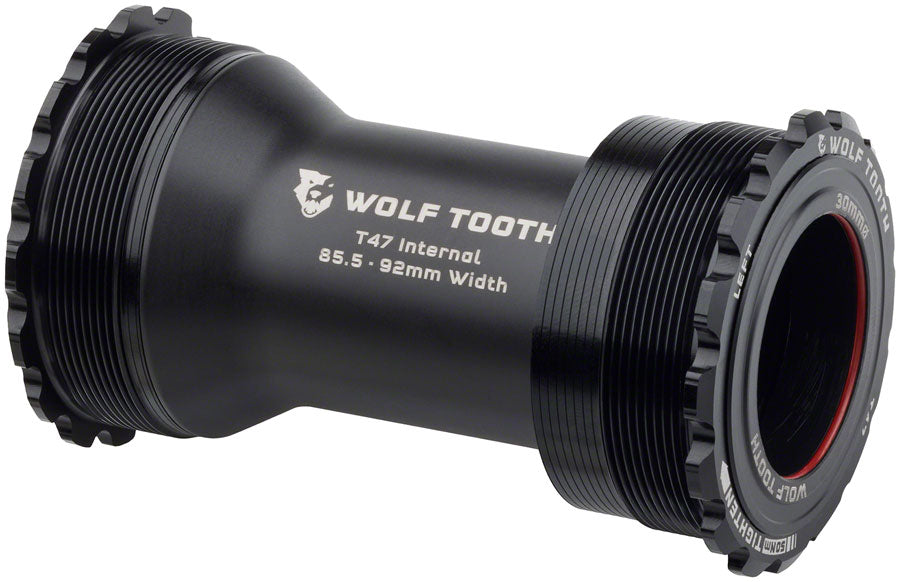

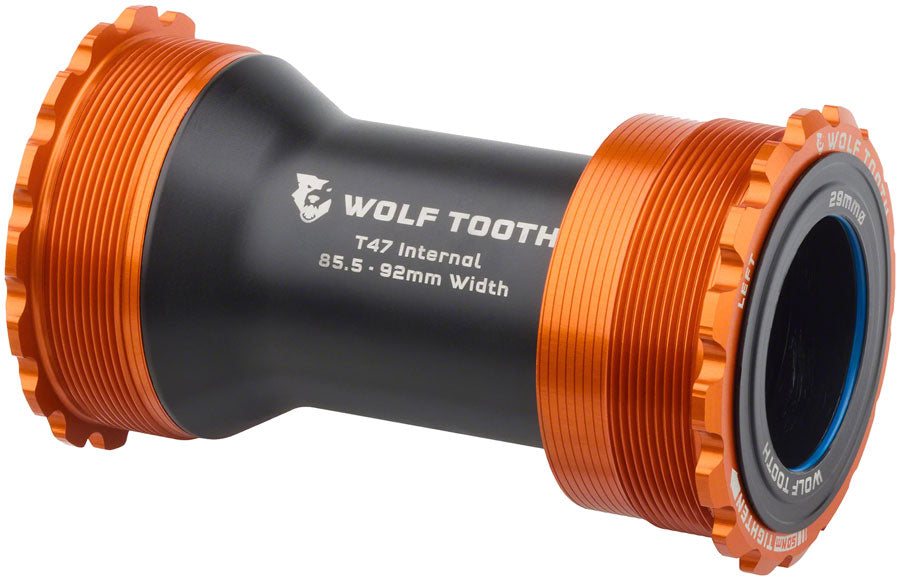

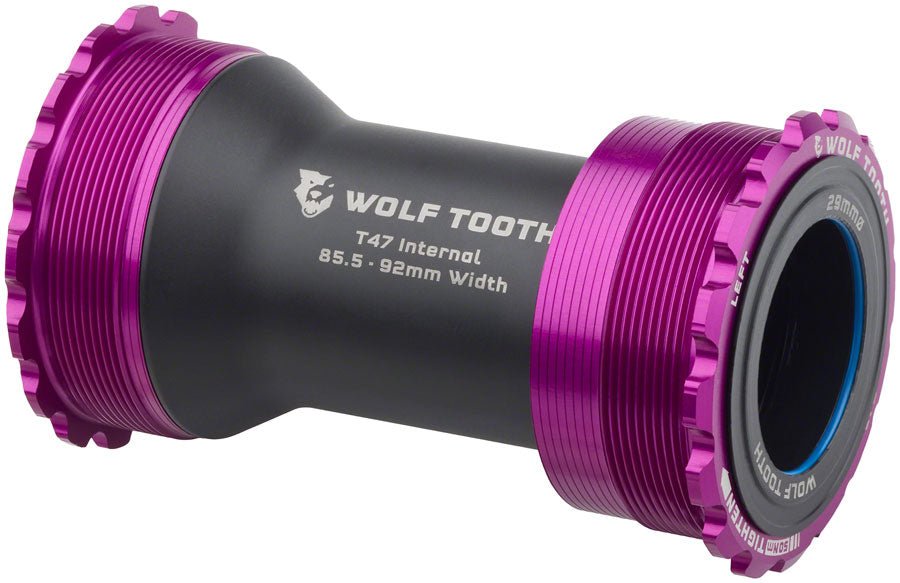

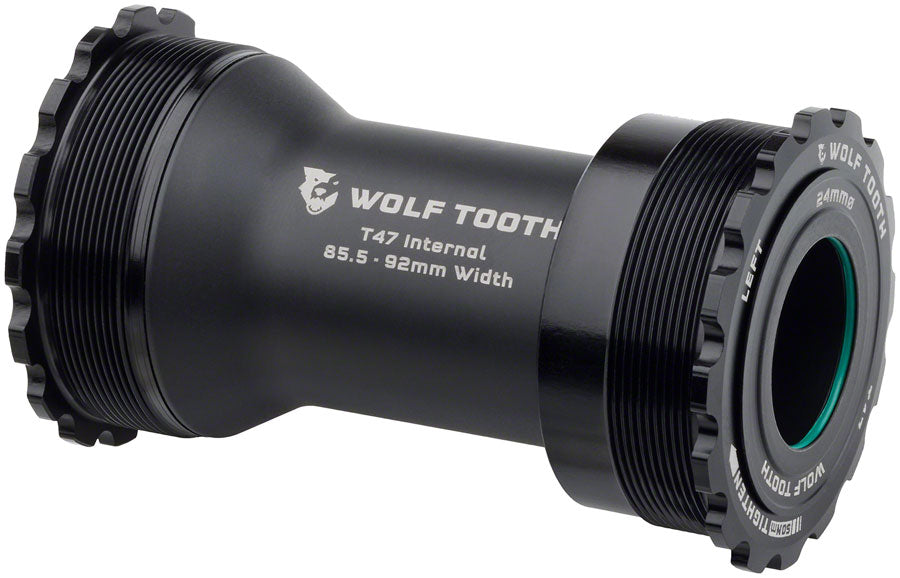

Wolf Tooth Bottom Bracket

Wolf Tooth T47 Inboard bottom brackets are engineered to be durable reliable lightweight and smooth. The weather sealing is best-in-class with o-ring seals on the spindle and inner shell a wiper connection seal between the bearing and end cap bearing race seals and a labyrinth end cap design. To prevent creaking spindle bushings separate the bearing inner race and crank spindle to eliminate metal-on-metal contact. The custom chrome bearings has been hardened for improved durability and reduced friction with ZNA corrosion-resistant coating while the ball diameter width and counts were custom selected by Wolf Tooth for top quality based on spindle diameter. Wolf Tooth bottom brackets are machined at Wolf Tooth in Minnesota USA.

Best-in-class sealing protects bearings from water and trail debris

Custom polymer spindle bushings prevent creaking and prolong the life of the crankset

Custom AlSl 52100 chrome bearing steel hardened to Rc 61-66 reduces friction for smooth pedaling with ZNA corrosion-resistant coating

T47 internal models will fit 85.5 and 92 mm wide frame bottom bracket shells

Bottom Bracket Shell I.D.	47
BB/Frame Interface	T47
BB Shell Width (mm)	92
Weight	103, 91, 96
Spindle Interface Type	392 EVO, RaceFace EXI, SRAM DUB
Defined Color	Black, Orange, Purple, Silver
